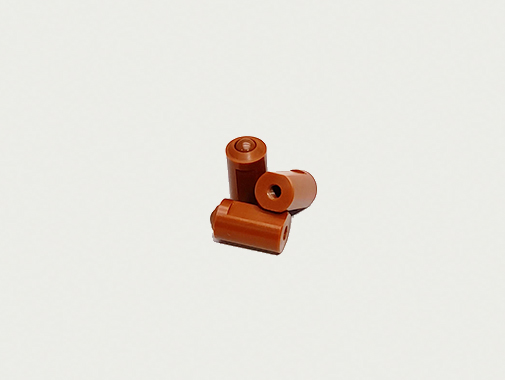

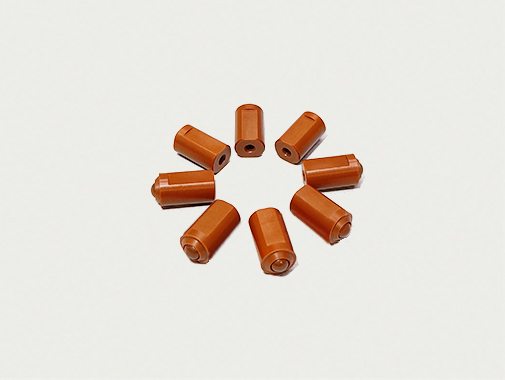

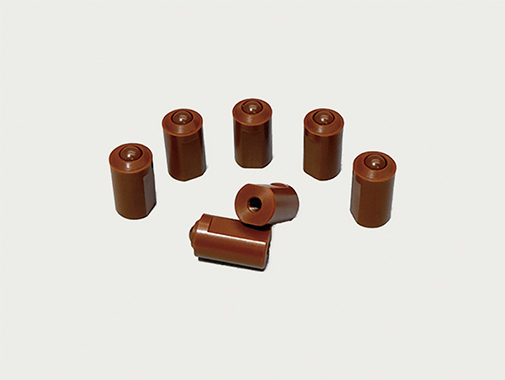

PI Ball Roller

PI-made ball roller are assembled in the conveying system. Made of PI material, is resistant to acid and alkali solvents, suitable for high temperature environments, with low wear rate and high strength, especially suitable fur EUV process.

AMOUNT*

Material Selection :

PI (Long-term use temperature 300℃) :
PI is a high-temperature-resistant thermosetting polymer with no melting point. It is super wear-resistant and low-wear under high-pressure/high-speed/high-temperature environments, and has chemical resistance and high mechanical properties. Even in the environment above 260 degrees Celsius, it can still maintain ideal strength, dimensional stability and creep resistance. Because of its high dimensional stability, it is most suitable making parts for vacuum equipment, aerospace and semiconductor industries.

PI Universal Ball Roller | High-Temperature Extreme Application Custom Solution

PI (Polyimide) is suitable for high-temperature, vacuum, and high-cleanliness environments under harsh operating conditions. Since PI universal ball rollers are typically designed according to equipment structure, load, and environmental requirements, this product is centered on “Fully Customisable in Size, Shape and Configuration”, providing engineering-driven design and manufacturing services.

High-Temperature Application Vacuum / Low Outgassing High Cleanliness Environment Full Size Customisation Selectable Structure / Mounting

Why Choose PI (Polyimide)?

High Temperature Resistance: Suitable for high-temperature processes and prolonged thermal exposure.
Dimensional Stability: Minimal thermal deformation, ideal for precision positioning and stable transfer systems.
Wear & Durability: Designed for long-term friction and rolling contact conditions.
Harsh Environment Compatibility: Suitable for vacuum, high-cleanliness, and specialised chemical exposure applications.

Typical Applications

Semiconductor equipment: transfer / positioning / guiding mechanisms
Vacuum chambers: motion components requiring low outgassing
High-temperature furnace surroundings: heat-resistant rolling structures
Cleanroom systems: reduced contamination risk materials
Precision conveying systems: stable rolling and positioning requirements

Customisable Options (Designed per Requirement)

Dimensions & Structure

Outer diameter (D), inner diameter (d), height (H), thread length / effective stroke
Ball diameter, seat geometry, chamfer / lead-in design
Stopper structure, positioning method, and outer form can be customised according to installation space

Mounting Options

Threaded type (Metric / Imperial / special thread forms available upon request)
Press-fit / Flange type / Special seat fitting
Design adjustable based on assembly sequence and maintenance requirements

Material & Environmental Design

Main body: PI (grade selection available upon evaluation)
Ball: PI / PEEK / SUS304 / Ceramic options (selected based on wear, cleanliness, and load conditions)
Spring: SUS304 or other high-temperature corrosion-resistant materials upon evaluation

Load & Lifetime Requirements

Ball and seat design evaluated based on load / speed / contact material
Material combinations selected based on temperature / vacuum / chemical exposure
Sample prototyping and dimensional verification available upon request

Quick Requirement Information (Recommended)

To accelerate selection and quotation, please provide the following information:

Operating Temperature (°C)	＿＿＿
Environmental Conditions	Vacuum / Cleanroom / Chemical Exposure / Other: ＿＿＿
Load Requirement (N / kg)	＿＿＿
Mounting Type	Threaded / Press-fit / Flange / Other: ＿＿＿
Dimension Requirement (D/d/H/L)	＿＿＿
Contact Surface Material	＿＿＿
Quantity / Annual Demand	＿＿＿

Need Custom PI Universal Ball Rollers?

Please provide your operating environment, dimensions, and load conditions. Our engineering team will evaluate and propose a suitable solution with quotation.

Request Custom Solution →

* If you have drawings (PDF/DWG/STEP), please attach them to accelerate evaluation.
